Black Brick Audio

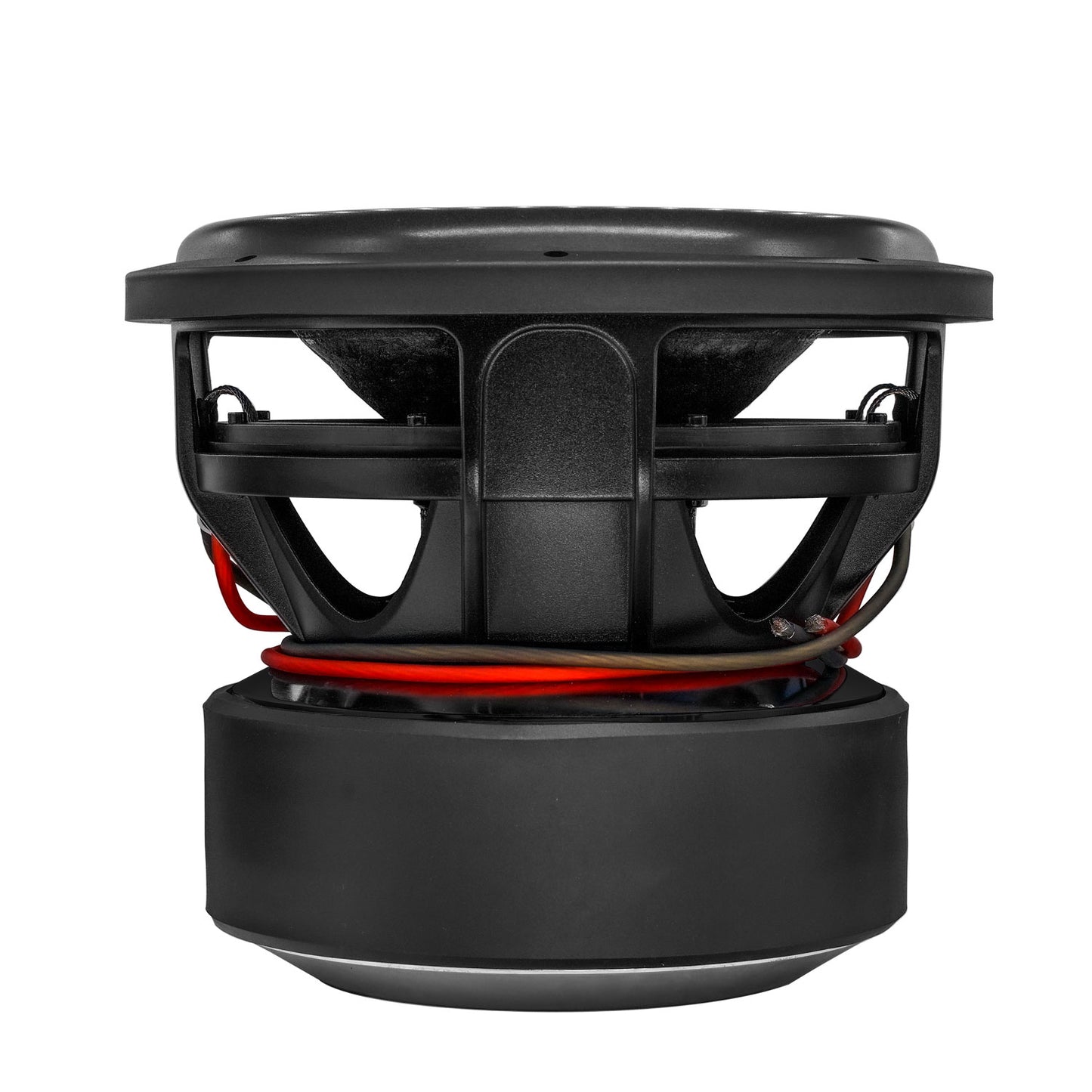

BRICKHOUSE 12" Subwoofer

Regular price $419.99 Sale price $499.99 Unit price per

Our largest, most powerful 12" woofer is finally here! Weighing in at 71lbs, this monster wont let you down. Period. Now with a black motor.

Specifications:

BASKET Tooling Die Cast
CONE Non-Pressed Paper Cone
SURROUND High-Roll Foam Surround
COIL 4" 8-Layer Flat Aluminum Heat Coated Coil
SPIDER Quad Stacked 10" Spider
MOTOR 470oz Ferrite Triple Stacked Black Motor
OHM Dual 2ohm
RMS 3000w RMS
PEAK 6000w PEAK
XMAX 36mm one-way XMAX
QMS 2.906 QMS
QES 0.760 QES
QTS 0.603 QTS
FS 42.7hz
BL 21.809
SD

506 sqcm

Freq Response 29 - 350hz
Sensitivity 82.8db



    Box Specifications:

    CUTOUT 11.25" Cutout Diameter
    MOUNT 9.5" Mounting Depth
    BOX Ported Box Recommended
    BOX 2.50~2.75' cu ft
    PORT 40" sq Area
    TUNING 32hz
    DISP .18 cu ft Displacement



    Warranty:

    • Manufacturer defect and shipping damage warranty only. If product is blown and burnt such as an unwound coil, burnt black coil, burnt tinsel leads it is not covered. This also applies to amplifiers, if it is burnt inside the amp due to stress on mosfets it is not covered.
